romax出错

feihu0105 · 发表于 2010-5-16 20:11:19

您需要登录才可以下载或查看，没有帐号？注册

x

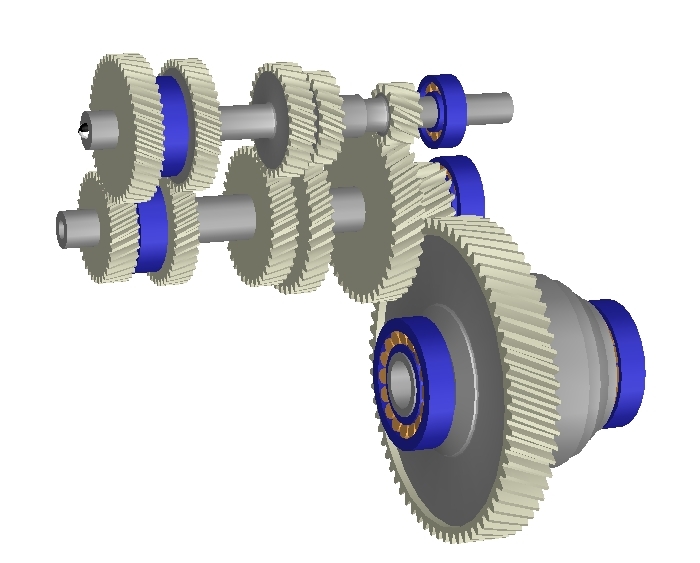

按照romax简明建成建了这么一个模型，但是尺寸检查时出错

Severity1 S' J+ n* ^( _$ ?. T; r9 v/ m	Message/ k5 h* [8 o$ G1 _/ ^' v0 M	Action/Description" z6 a6 G: x1 W$ U) s( M. {
Failure	This integral cylindrical gear is mounted on a non-cylindrical shaft section- M# @" L C4 `5 Y# }* ?	Change the shaft definition of shuchu at the mounting location of Wheel 6 to be cylindrical 0 g8 s. R" I, \|. g7 a) A j
Failure	Integral gear Wheel 6 geometry is not compatible with the shaft section geometry it is mounted on. * \% D* H8 ?& O% M0 n8 W( S ^, k	Check the section geometry of shuchu for sections 0 D4 g4 j6 _( b* C- w @- Shaft Section 2+ l9 \2 i% Y7 L, n# `+ I - Shaft Section 3 . J8 d4 O( w! z1 ^, r- Shaft Section 49 O* S1 @6 z8 B: d# B/ j( W - Shaft Section 5 ) H/ r) B0 \2 V7 o: ^The recommended limits are >=159.834 mm, <=172.014 mm0 y: g6 s* [6 @ The required limits are >=106.556 mm, <=258.021 mm, or make the gear blank a carrier type. % z' K0 k9 y) }! y; h4 t

请高手帮忙解答

exe1.rar (46.1 KB, 下载次数: 2)

zsongsky · 发表于 2011-4-3 19:29:48

第一个BUG ：圆柱齿轮被挂载到了非圆柱的轴段上
看看你的齿轮是放在什么位置的  是不是放在了轴段间的圆角面上

第二个BUG：齿轮6的几何特性与轴不相配
后面的说明里给出了轴段的几何要求  只要把数值修改到这个范围内就可以了
