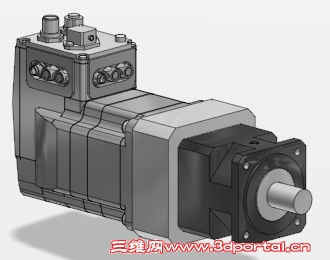

超精细Schneider施奈德LEXIUM-ILS 85步进电机UGS模型

linkable

( Y7 D3 A( o7 r( h- x% E- `. ]
模型规格：ILS1B851PC1APLS70-005
PF (Product family): Intelligent Compact Drive IclA
/ B& i, L( m( _/ @. m% U MT (Motor type): Stepper motor
% X( M1 n& M* f) P( }* P VN (Nominal supply voltage): 24-36
- @& j3 u  O5 f) s# m$ `; t3 } F (Communication interface): Profibus DP
+ n5 u( @% B) M/ W MB (Motor size): 85
ML (Motor length): 1 Segment
$ l% ~8 G7 ]$ k3 D WT (Winding type): medium speed, medium torque
AT (Connection technology): Industrial connectors
KB (Cable bushing): Platte
" l, [( N7 E0 b0 B  r( Q4 s5 Q MS (Measurement system): Standard index pulse
HB (Holding brake): No holding brake
! @: J5 T- x0 F8 q G (Gearing): Planetary gearbox PLS 70 - 5:1
- P/ w6 D% t+ v% J/ L0 q AR (Mounting direction): -
0 A* q$ A3 ^2 q  ?0 N
UG NX >=3 模型下载: sch_lexium_ugs.zip (646.14 KB, 下载次数: 107)

2011-1-14 13:57 上传

点击文件名下载附件

. }. k8 W% |1 K更多施奈德工控产品下载，尽在：http://linkable.partcommunity.com/PARTcommunity/Portal/linkable?goto=products&info=schneider_electric
