请问各位高手，有做关于自动装配的二次开发的吗？我用的是VB。试了很多方法不行。这是我写的代码：7 T+ J U9 @% B! l; b7 L
5 ~! F+ P- A/ Z$ K# lPublic swApp As SldWorks.SldWorks
0 t0 v7 u5 I: j; c% DPublic Model As SldWorks.ModelDoc2! G9 @& B! j& M7 x( a4 e+ j" U$ X
Public SelMrg As SldWorks.SelectionMgr9 {1 I9 G, r% |6 n7 ^1 |+ S1 j
Public Assy As SldWorks.AssemblyDoc0 k1 G! z9 R! g+ Q7 i# b* E
Public SelFace As SldWorks.face2% m3 {% ?$ \2 K6 H
Public Body As SldWorks.body2$ r( Z$ Z0 V# N2 u* O) `
Public errors As Long* m- s; r1 ` b! |# ?
-------------------------------------------------------------------------------------------------
/ [" M0 L( T7 A c5 B* Y) G9 Y* t2 t+ CPrivate Sub CommandButton1_Click()
4 V/ C' G& s4 O! i2 wSet swApp = Application.SldWorks# t+ b5 }1 S: G0 S" @% n, t
Set swModel = swApp.ActiveDoc4 j' c9 h; R% P5 ?4 z/ ^
swApp.ActivateDoc2 "mate.SLDASM", True, errors% k) v& I2 T' ]1 p0 b' L* W
Model.SelectByID "zhu-1 @ mate", "COMPONENT", 0, 0, 0
N$ M4 K4 C5 { H8 P- LCall SelectFace("face2")
! _5 T, d( c& T: Z3 zModel.SelectByID "zuo-1@mate", "COMPONENT", 0, 0, 0
6 A- R3 e8 \& V% p4 @- ]3 MCall SelectFace("face1")
& D5 v4 J. ~& o0 R; xAssy.AddMate swMateCOINCIDENT, 0, False, 0, 0" L1 S ^5 `+ x m, M% A) ^
End Sub
* L, ]' V" [; k# o5 \-------------------------------------------------------------------------------------------------------------------1 u3 E! _5 I, T; m$ Q: e7 Y6 I
Public Function SelectFace(FaceName As String). K( R4 D9 ~, S( }5 L
Dim i As Integer
5 Q9 }4 u0 F$ P; h: g, x, ^' pDim Comp As Component2
1 o) v" w. o1 J! CDim Face As face2% S; x% t4 j, ]8 j
Dim Body As body2& U0 a4 }( ~( K$ ~) _
Dim CurFaceName As String
0 d. R9 E( ]! I% Y; B$ ~Set SelMrg = swModel.SelectionManager
+ Q8 |" p$ x, V1 x9 m0 DSet Comp = SelMrg.IGetSelectedObjectsComponent2(SelMrg.GetSelectedObjectCount)
( P) h8 ]+ S' O- w/ ^Set Body = Comp.IGetBody
6 D' ]6 c! D- C) F) TSet Face = Body.IGetFirstFace6 Z* ~* K K; m* P# c L+ g
If Body.GetFaceCount = 1 Then
' [! X7 o9 @7 M: E) @+ U1 @6 V# @ Dim Face As SldWorks.entity
7 o, h: _) ?! G$ M Face.Select2 True, 0/ ^- ? Z8 A: u. ?
Else3 p. m: p1 q) M
For i = 1 To Body.GetFaceCount - 1 @* x4 K/ c; A6 ~& r i6 c7 j
Set CurFaceName = swModel.GetEntityName(Face)
$ y) S5 v. @- f( e* q% ~; D) A If (CurFaceNme = FaceName) Then0 w% O5 y: B! w# L( v/ f
Dim Face As SldWorks.entity3 p/ x1 _* f) f" c- e' B1 ~! V
Face.Select2 True, 06 w9 m' {4 k8 t( ?/ c
Set Face = Face.IGetNextFace" Z( U r6 r& }& u. `
End If& P5 K/ i3 X! [2 V
End If
5 q7 O! f8 k. t4 p1 P
# n3 N1 K2 Y5 k( @4 I* K+ W1 LEnd Function
) t" X* n. ^- z: n-------------------------------------------------------------------------------------------------------------------& N/ e; |& e" D. E# I/ g7 p% B/ `, L

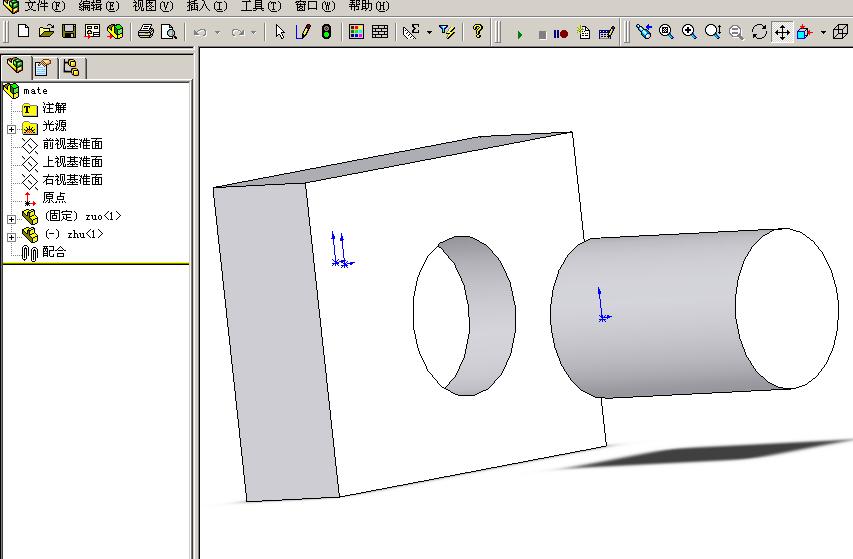

下图是我要装配的零件 |
-
我要装配的两个零件
|
